Vestel · Mini
VESTEL-V160W/DN1(D)
6 HP
15,5 kW cooling
18,0 kW heating
R410A
HP
Katalog

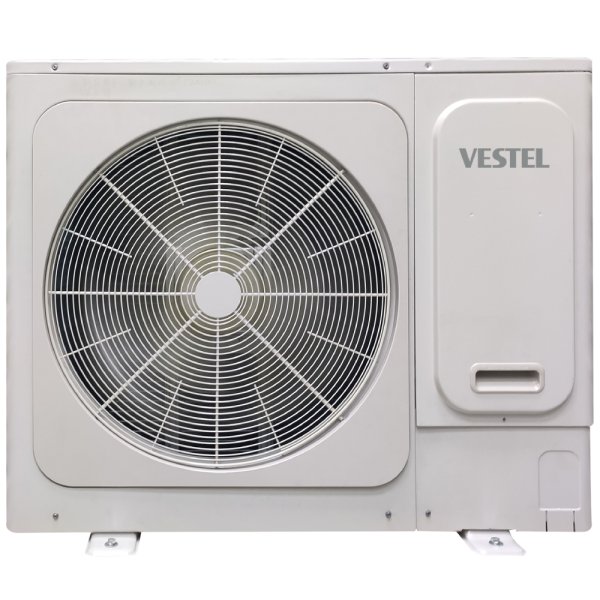

Vestel VESTEL-V160W/DN1(D) is a heat pump VRF outdoor unit with a cooling capacity of 6 HP (15,5 kW). It uses R410A refrigerant. It offers a 950×840×440 mm body.
Performance
| Cooling | |
|---|---|
| Nominal capacity | 15,50 kW |
| Power input | 4,80 kW |
| EER (rated) | 3,23 |
| SEER (seasonal) | 0,00 |
| Heating | |
| Nominal capacity | 18,00 kW |
| Power input | 4,65 kW |
| COP (rated) | 3,87 |
| SCOP (seasonal) | 0,00 |
Physical & Environmental
| General | |
|---|---|
| System type | HP (Heat Pump) |
| Refrigerant | R410A |
| Power supply | 220-240V/1F/50Hz |
| Max. indoor units | — |
| Dimensions & Weight | |
| Dimensions (H×W×D) | 840 × 950 × 440 mm |
| Weight | 78 kg |
| Sound (LwA) | |
| In cooling | 0,0 dB(A) |
| In heating | 0,0 dB(A) |
| Operating temperature | |
| Cooling range | -15°C ÷ 55°C |
| Heating range | -15°C ÷ 27°C |
Üstten görünüş
Ölçüler mmYükseklik: 840 mm
