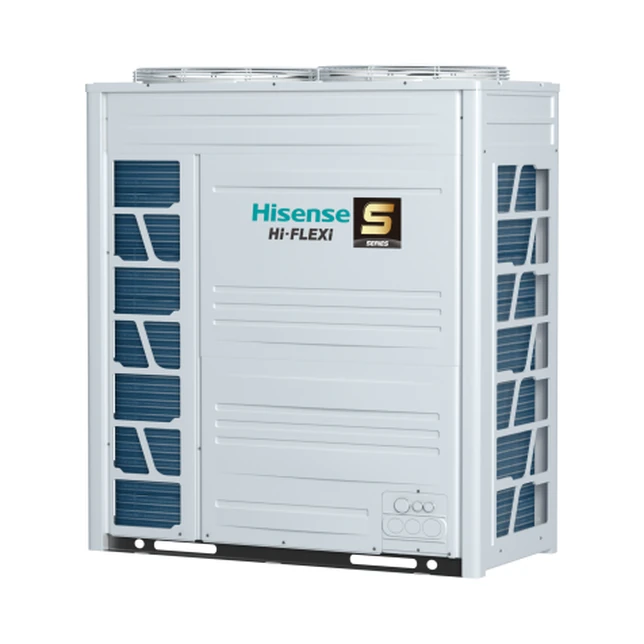

AVWT-250FKFSB

26 HP 72,5 kW cooling 72,5 kW heating R410A HR Katalog

↓ Run simulation for this unit ♡ Add to favorites

HISENSE AVWT-250FKFSB is a heat recovery VRF outdoor unit with a cooling capacity of 26 HP (72,5 kW). It uses R410A refrigerant. It offers a 1600×1730×750 mm body, connection for up to 43 indoor units.

Performance

Cooling
Nominal capacity	72,50 kW
Power input	21,90 kW
EER (rated)	3,31
SEER (seasonal) ℹ	0,00
Heating
Nominal capacity	72,50 kW
Power input	22,35 kW
COP (rated)	3,58
SCOP (seasonal) ℹ	0,00
Test configuration
Indoor unit combination	AVBC-27HJDBA(S) , AVBC-30HJDBA(Q) (Cassette)

Physical & Environmental

General
System type	HR (Heat Recovery)
Cooling type	Air-cooled
Combination	Possible
Refrigerant	R410A
Power supply	400-3-50
Max. indoor units	43
Air flow	21.000 m³/h
Fan count	2
Compressor count	2
Dimensions & Weight
Dimensions (H×W×D)	1730 × 1600 × 750 mm
Weight	400 kg
Sound (LwA)
In cooling	—
In heating	—
Sound pressure (1m)
In cooling	67,0 dB(A)
In heating	67,0 dB(A)
Operating temperature
Cooling range	-10°C ÷ 52°C
Heating range	-25°C ÷ 16°C

Üstten görünüş

Ölçüler mm

Yükseklik: 1.730 mm

⚡ Energy simulation for this unit

Bina tipi

Şehir / Bölge

Alan (m²)

Çalışma Profili

Soğutma saat/gün

Isıtma saat/gün

Soğutma gün/yıl

Isıtma gün/yıl

Bina tipi ve şehir seçince otomatik doldurulur. İsterseniz override edebilirsiniz.

Pro · EN 14825 bin method

Province

Weather station

Design temperature (ASHRAE)

Start hour

Operating hours/day

Days/week

Intended use

Load basis

Balance temperature (°C) ℹ

Indoor setpoint heating (°C) ℹ

Indoor setpoint cooling (°C)

After-hours setback heating ℹ

Hourly TMYx (2009–2023) climate data is split into 1 °C bins; in each bin the building load is met with capacity and COP/EER derived from the product's Eurovent part-load points. Hours outside the operating schedule count as standby consumption; with after-hours setback heating selected, low-load heating is also computed in those hours whenever the outdoor air drops below the threshold.
