AM300KXWANR

30 HP 84,0 kW cooling 94,5 kW heating R410A HP HR capable Katalog

↓ Run simulation for this unit ♡ Add to favorites

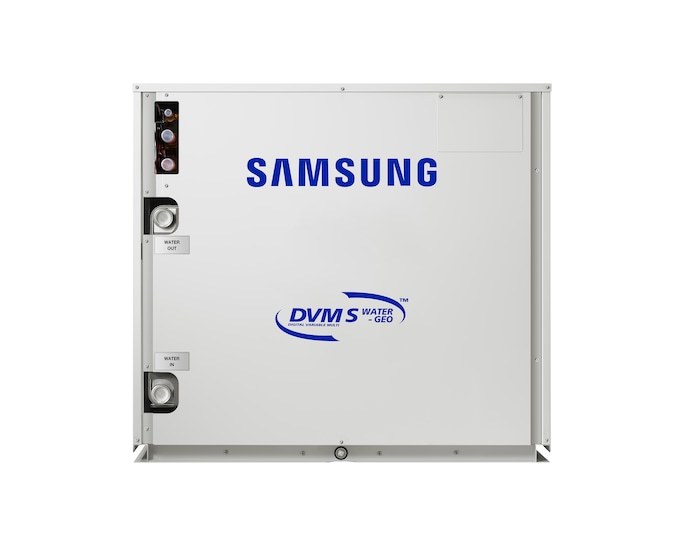

SAMSUNG AM300KXWANR is a water-cooled heat pump VRF outdoor unit with a cooling capacity of 30 HP (84,0 kW). It uses R410A refrigerant. It offers a cooling sound power of 75,0 dB(A), a 1100×1000×545 mm body, connection for up to 55 indoor units.

Performance

Cooling
Nominal capacity	84,00 kW
Power input	16,80 kW
EER (rated)	5,00
SEER (seasonal)	0,00
Heating
Nominal capacity	94,50 kW
Power input	16,88 kW
COP (rated)	5,60
SCOP (seasonal)	0,00

Physical & Environmental

General
System type	HP (Heat Pump · can also operate as heat recovery)
Cooling type	Water-cooled
Combination	Possible
Refrigerant	R410A
Power supply	380-415V/3F/50-60Hz
Max. indoor units	55
Compressor count	2
Dimensions & Weight
Dimensions (H×W×D)	1000 × 1100 × 545 mm
Weight	280 kg
Sound (LwA)
In cooling	75,0 dB(A)
In heating	—
Sound pressure (1m)
In cooling	56,0 dB(A)
In heating	58,0 dB(A)
Water inlet temperature
Inlet range (cooling/heating)	10°C ÷ 45°C

Üstten görünüş

Ölçüler mm

Yükseklik: 1.000 mm

⚡ Energy simulation for this unit

Bina tipi

Şehir / Bölge

Alan (m²)

Çalışma Profili

Soğutma saat/gün

Isıtma saat/gün

Soğutma gün/yıl

Isıtma gün/yıl

Bina tipi ve şehir seçince otomatik doldurulur. İsterseniz override edebilirsiniz.

Pro · EN 14825 bin method

Province

Weather station

Design temperature (ASHRAE)

Start hour

Operating hours/day

Days/week

Intended use

Load basis

Balance temperature (°C) ℹ

Indoor setpoint heating (°C) ℹ

Indoor setpoint cooling (°C)

After-hours setback heating ℹ

Hourly TMYx (2009–2023) climate data is split into 1 °C bins; in each bin the building load is met with capacity and COP/EER derived from the product's Eurovent part-load points. Hours outside the operating schedule count as standby consumption; with after-hours setback heating selected, low-load heating is also computed in those hours whenever the outdoor air drops below the threshold.
